HZS120 Concrete Batching Plant Sale Zoom in
  • Name:

    HZS120 Concrete Batching Plant Sale

  • Minimum Order Quantity:1 Set/Sets
  • Supply Ability:15 Set/Sets per Month
  • Payment Terms:L/C,T/T

Product Description

Details of HZS120 Concrete Batching plant Sale

 Model Number:HZS120
Condition:New
Capacity:120m3/h
Main Mixer:JS3000
Power of Main Mixer:110kw
Feeding Mode:Belt conveyor
Mixing Time:60s
Max Aggregate Size:60/80mm
Discharging Height:3.8m(for customers choice)
Control Mode:Automatic Control System/Central Console Control System
Aggregate Weighing Precision:2%
Cement Weighing Precision:1%

Packaging & Delivery of HZS120 concrete batching plant sale

Packaging Detail:container
Delivery Detail:12 days



Specifications of HZS120 Concrete batching plant sale

 1.Competitive price and quality
2.Compact structure,reliable performance
3.Warranty:12Months

 The layout for HZS120 complete concrete batching plant:

On the basis of combining advantages of various foreign mixing buildings&stations and advanced technology, belt type concrete batching plant adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adpots PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining. With fully-closed tower, aggregate conveying system and dedusting system can effectively reduce environmental pollution arising from dust and noise.

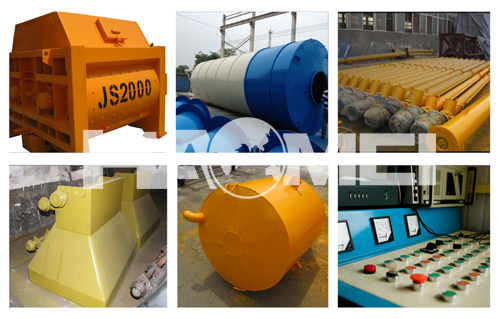

Main features of HZS120 Concrete batching plant sale

1. Adopt combined structure and modular unit, convenient to install and remove;
2. Mixing and aggregate lifting system adopt JS3000 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;
3. Aggregate batching system adopts PLD4800 concrete batcher which offers efficient and accurate measurement;
4. Powder lot is electronic measured, highly accurate dosing;
5. Water is flow-metering, simple and practical, highly accurate dosing.



Main technical data of HZS120 concrete batching plant sale

Type

HZS120

Productivity

120m³/h

Mixer

JS3000

Total power

205KW

Maximum aggregate diameter

80mm

Aggregate feeding method

Conveyor belt

Aggregate bins volume

4x18m³

Aggregate weighing

2x4000kg ±2%

Cement weighing

1800kg ±1%

Fly-ash weighing

800kg ±1%

Water weighing

800kg ±1%

Additive weighing

50kg ±1%

Overall dimension(during operating)

        (LXWXH)

58.5mX7mX12.9m



Discharging height

3.8m

Total weight

77T

Control

Fully automatic central control

Cement silo(optional)

Required on clients' demand

Cement screw(optional)

Each cement silo equipped with one φ325 screw
