China HZS35 Concrete Mixing Plant Zoom in
  • Name:

    China HZS35 Concrete Mixing Plant

  • Minimum Order Quantity:1 Set/Sets
  • Supply Ability:15 Set/Sets per Month
  • Payment Terms:L/C,T/T

Product Description

Main Specifications of China HZS35 concrete mixing  plant :

1. Model: HZS35

2. Productivity: 35 cbm/h

3. General power: 87KW

4. Discharger Capacity: 750L

5. Discharger Height: 3.8m

6. Mixed Aggregate: 5cbm x 3PCS

7. Measure Range:

A. Aggregate Balance: 0-2300KG

B. Powder Balance: 0-500KG

C. Water Balance: 0-300KG

D. Additive Balance: 0-18KGHZS35 concrete batching plant configuration:

 HZS35 mixing plant, also known as simple type, simple HZS35 batching plant comprises a conveyor belt material, mixing console, batching machine combination.

, the station has simple structure, convenient installation, system configuration, advanced measurement and control system adopts imported components, high reliability.

Description: simple HZS35 batching plant is fully automated by feeding, ingredients, mixing and electric control parts of a concrete mixing equipment, it is suitable for small and medium-sized construction projects, casting factory and commodity concrete production plants.

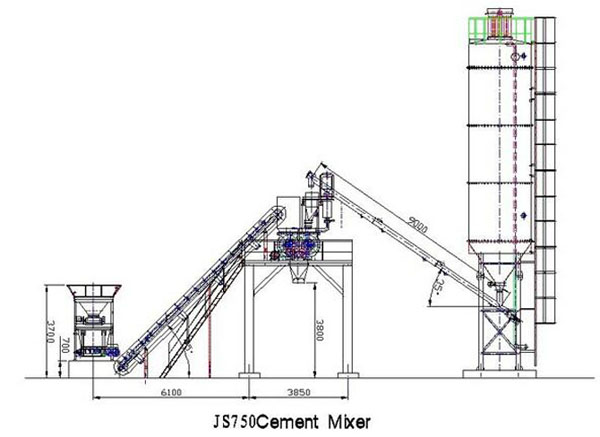

China HZS35 concrete mixing plant configuration:

Simple HZS35 batching plant comprises a conveyor belt material, mixing console, batching machine combination.

Mixing console and upgrading aggregate using JS750 dual-axial concrete mixer, aggregate ingredients part adopts PLD1200 type concrete batching machine, loader feeding, electronic scales measurement;Cement by cement warehouse storage, screw conveyor conveying, cement scale measurement;Water from the tank and tank storage, water supply pump, water balance measurement.After storage box admixture mix liquid admixture, measured by the corrosion resistant pump into admixture scale.The entire ingredients and the mixing process is controlled by the electronic control system automatically (also can be manual control), control system can store a number of different ratio of concrete for users to call at any time.This series stand with different commodity concrete mixing station, the station has simple structure, convenient installation, system configuration, advanced measurement and control system adopts imported components, high reliability.

 It is  fully automated by feeding, ingredients, mixing and electric control parts of a concrete mixing equipment, it is suitable for small and medium-sized construction projects, casting factory and commodity concrete production plant
