Automatic Concrete Batching Plants

Automated concrete batching plants are complete sets of equipment that utilize integrated technologies such as computer control systems, sensors, and actuators to automate the entire concrete production process (including raw material transportation, metering, mixing, discharging, and equipment monitoring). They focus on reducing human intervention and ensure efficient, stable, and environmentally friendly concrete production through precise control and intelligent management. Automatic concrete batching plants are widely used in construction, municipal construction, water conservancy, and hydropower projects.


Common Types Of Automatic Concrete Batching Plant
1. Classification by Degree of Automation
- Semi-automatic concrete batching plant
Features: Core production processes (such as mixer operation and raw material metering) are automated, but some auxiliary processes still require manual intervention.
Specific Features:
Raw material (sand, stone, cement, etc.) loading may rely on manual operation of loaders or belt conveyors to start and stop;
After metering, manual confirmation of mix parameters or triggering of mixing commands is required;
Equipment fault alarms require on-site investigation of the cause (such as sensor abnormality, material blockage, etc.);
Production data must be manually entered or exported regularly, and automatic report generation is not possible. Applicable Scenarios: Small-scale engineering projects, small-scale production (≤50m³/h), or businesses with limited automation budgets.
- Fully automatic concrete batching plant
Features: The entire process, from raw material delivery to concrete discharge, requires no human intervention and is fully autonomously controlled by the system, featuring intelligent monitoring, adaptive adjustment, and remote management capabilities. Specific features:
Raw material transportation: Silo level sensors, linked to the IoT, automatically trigger loader or conveyor refills to prevent material shortages.
Metering control: High-precision sensors (error ≤ ±0.5%) provide real-time feedback on raw material weight, allowing the system to automatically adjust feed rates to ensure accurate mix ratios.
Mixing process: Mixing time is automatically set based on the concrete grade (e.g., 90-120 seconds for ordinary concrete, 150-180 seconds for high-strength concrete), and admixtures are adjusted using temperature sensors (e.g., adding retarders in summer).
Fault handling: The system automatically diagnoses faults (e.g., motor overload, belt misalignment) and triggers emergency measures (e.g., shutdown, alert notification to management personnel's mobile phones).
Data management: Automatically records data such as mix ratio, time, and strength for each batch of concrete, generating production reports and raw material consumption statistics, and supporting integration with project management systems.
Applicable scenarios: Large-scale commercial concrete plants and key projects (e.g., high-speed railways and bridges) with an hourly output of 100 m³ or more, requiring extremely high production efficiency and consistent quality.

2. Classification by Structural Type

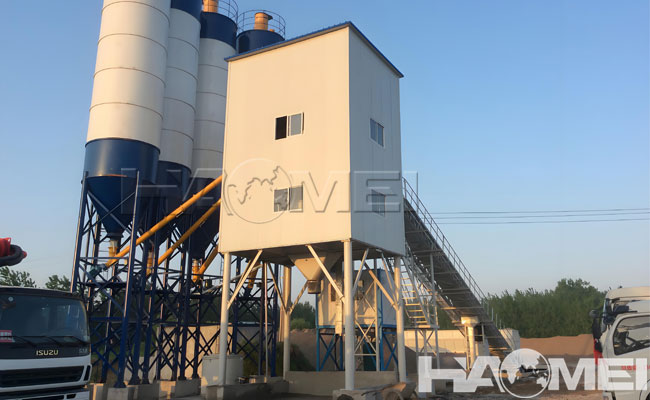

- Stationary automatic concrete batching plant
Structural Features: Equipment (storage silos, mixer, batching machine, etc.) is fixed to a concrete foundation and cannot be moved, resulting in a compact layout and a high degree of customization.
Advantages: Can be configured with large-capacity storage silos (e.g., cement silos with a capacity of ≥500 tons) and multiple production lines, suitable for long-term, high-volume production (capacity exceeding 300 m³/h).
Typical Applications: Commercial concrete mixing plants in urban areas, with a service radius of 20-50 kilometers.

- Mobile automatic concrete batching plant
Structural Features: Equipment is integrated onto a trailer chassis or crawler platform and can be moved by towing vehicle, with a short installation period (≤3 days).
Advantages: Highly mobile, suitable for remote areas or short-term projects (e.g., highway repairs, small water conservancy projects), without the need for complex foundation construction.
Limitations: Limited by transport dimensions, storage capacity is relatively small (cement silos ≤100 tons), and hourly production is generally ≤80 m³/h.

- Ready-mixed automatic concrete batching plant
Targeting: Designed specifically for commercial concrete production and marketed for sale (e.g., supplying real estate projects and municipal engineering projects).
Features: Comprehensive equipment, including multi-size storage silos (for different strength grades of sand and gravel), fly ash silos, admixture systems, and laboratory connectivity (for real-time concrete slump testing).
Management requirements: ISO quality certification is required, with production data traceable to meet customers' diverse needs for concrete grades (C15-C80).

- Engineering automatic concrete batching plants
Targeting: Directly serving a single project (e.g., hydropower station, airport runway), with production cycles aligned with project cycles.
Features: Customized according to project requirements. For example, a hydropower concrete batching plant may need to accommodate the production of high-grade concrete (C60 and above), potentially requiring the addition of a fiber feeder. Concrete batching plants in cold regions require an aggregate preheating system to prevent freezing.

3. Classification by Number of Mixing Units
- Single-unit automatic concrete batching plant
Configuration: One mixing unit (mostly a twin-shaft forced concrete mixer with a capacity of 2-4 m³), corresponding to one production line.
Production Capacity: 50-150 m³/h, suitable for small- to medium-sized production, with a low equipment investment.
- Dual-unit automatic concrete batching plant
Configuration: Two mixing units operate in parallel, sharing a material storage and metering system. They can simultaneously produce the same grade of concrete or produce different grades separately.
Production Capacity: 150-300 m³/h, with efficiency nearly double that of a single-unit mixer. Suitable for centralized material supply in large-scale projects (such as high-speed rail station construction).
Advantages: Redundant design: If one unit fails, the other unit can continue production, minimizing downtime losses.

Advantages of Automatic Concrete Batching Plants:
- Significantly Improved Production Efficiency
Fully automatic concrete batching plants can shorten the mixing cycle per batch to 40-60 seconds (compared to 80-120 seconds for traditional concrete batching plants), increasing hourly output by over 50%.
An intelligent scheduling system automatically schedules production based on order priority, reducing equipment idle time (for example,fully automatic concrete batching plants have an equipment utilization rate of 90%, compared to approximately 60% for traditional concrete batching plants).
- Higher Concrete Quality Stability
Metering Accuracy: Fully automatic concrete batching plantts have a metering error of ≤±0.3% for cement and admixtures, and ≤±1% for sand and gravel (compared to ±3%-5% for traditional concrete batching plants). This prevents insufficient strength due to mix ratio deviations.
Process Control: Infrared thermometers monitor aggregate temperature in real time and automatically adjust the mixing water temperature (e.g., adding ice water in summer) to ensure that the concrete exits the mixer at the required temperature (≤35°C in summer, ≥5°C in winter).
- Overall Cost Reduction
Labor Costs: For a single production line, a semi-automatic concrete batching plant requires 3-5 people, while a fully automatic concrete batching plant only requires 1-2 people (with monitoring system).
Raw Material Waste: Through precise metering and a waste recovery system, the fully automatic concrete batching plant achieves a raw material loss rate of ≤1% (compared to ≥3% for conventional concrete batching plants).
- Enhanced Environmental Protection and Compliance
Dust Control: Enclosed storage silos and pulse dust collectors achieve dust emission concentrations of ≤10 mg/m³ (better than the national standard of 30 mg/m³).
Noise Control: The main mixer is equipped with a soundproof enclosure, achieving noise levels of ≤75 decibels (compared to ≥90 decibels for conventional stations without treatment).
Data Traceability: Production data is automatically recorded and connected to the environmental protection department's monitoring platform, meeting the requirements of policies such as "Zero Waste City."
- Intelligent Management Upgrade
Remote Monitoring: Managers can use a mobile app to view production progress and equipment status (such as main unit current and silo level) in real time, and remotely start and stop equipment.
Data Analysis: The system automatically generates production reports and equipment maintenance reminders (such as lubricant change intervals), helping companies optimize production planning and equipment maintenance.

Market Share and Competitive Landscape
The global automatic concrete batching plant market was estimated to be worth approximately US$8.5 billion in 2023 and is expected to reach US$10 billion in 2025, with a compound annual growth rate of approximately 8.5%. The share of fully automatic concrete batching plants has been increasing annually, reaching approximately 60% of the market in 2023 (primarily concentrated in leading enterprises and large-scale projects); semi-automatic concrete batching plants account for approximately 40%, primarily in small and medium-sized enterprises and county-level markets.

There are many types of automatic concrete batching plants, and choosing the right one will depend on your construction needs. With technological advancements, the intelligence level of automatic concrete batching plants is also increasing, and they are likely to become more prevalent and widely used in the future.
