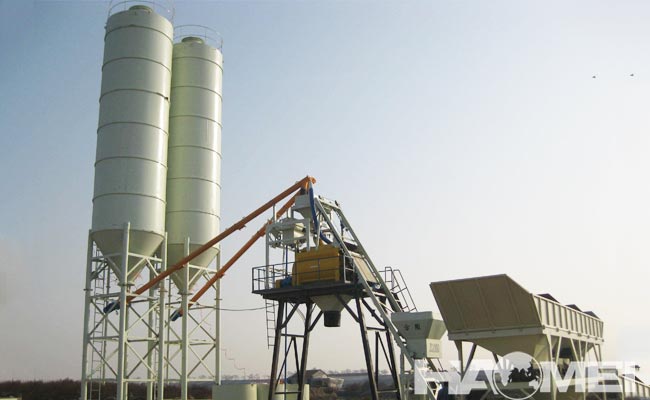

Hot Sale HZS50 Hopper Concrete Batching Plant

HZS50 hopper concrete plant is a hot-selling product mainly due to its own performance advantages, cost advantages and a wide range of application scenarios. HZS50 hopper concrete batching plant is a popular equipment in small and medium-sized projects, especially in some developing countries and regions.


Structural composition of hzs50 hopper concrete plant:
- Aggregate batching system:
Generally adopts PLD1600 concrete batching machine, which is composed of belt conveyor, weighing system, electrical control system, etc., and feeds through belt conveyor to realize automatic batching and accurate measurement.
- Aggregate conveying system:
It mostly adopts lifting bucket method, which has the advantage of small footprint and can lift aggregate to the feed port above the mixing main machine.
- Mixing system:
With JS1000 twin-shaft forced concrete mixer as the core, it is the key component to ensure the quality of concrete mixing and can make various raw materials fully mixed and uniform.
- Electronic control system:
It adopts advanced control system, such as WINDOWS series concrete batching plant control system, which has stable performance and reliable operation. It can be automatically controlled by microcomputer to manage the whole process of the mixing station, and the operation can be completed by one person in the operation room.
- Powder storage and conveying system:
Including cement silo, fly ash silo and other powder storage equipment, as well as screw conveyor and other conveying equipment, used to convey powder to the mixing host.
- Water supply and admixture system:
The water supply system uses a water pump to supply water, which can speed up the water flow rate and achieve uniform spraying; the admixture supply adopts a diversion device to meet the requirements of precise measurement and ensure the accurate addition of admixtures.


Features of HZS50 concrete batching plant:
- High degree of automation:
The advanced automatic control system can realize full automatic operation, and can automatically complete the mixing, transportation and unloading of concrete, greatly improving production efficiency and reducing the time and labor cost of manual operation.
- Accurate batching:
Equipped with a high-precision batching system, such as the PLD1600 concrete batching machine, the aggregate batching uses sensors as weighing elements, and the batching of cement, water and liquid admixtures is measured by electronic scales, which can accurately control the batching ratio, effectively avoid manual operation errors, and ensure the uniformity and strength of concrete.
- Good mixing quality:
The mixing host usually adopts JS1000 double-horizontal shaft forced concrete mixer, which has the characteristics of reasonable structure, good mixing quality, short time, low energy consumption and low noise. It can be used to mix dry hard concrete, fluid concrete, lightweight aggregate concrete and various mortars.
- Small footprint:
Whether it adopts the traditional climbing bucket structure or the belt conveyor feeding method, the HZS50 hopper concrete plant has the advantage of small footprint and flexible placement, especially suitable for construction sites with narrow sites.
- Easy maintenance:
The equipment uses high-quality raw materials and parts, with good wear resistance and corrosion resistance, which is conducive to extending the service life of the equipment and reducing the maintenance cost of the enterprise. At the same time, its structural design is reasonable, and it is very easy to maintain and operate.
- Environmental protection and energy saving:
Some HZS50 concrete batching plants adopt advanced dust removal systems and noise reduction technologies, which can effectively reduce dust and noise pollution and meet environmental protection requirements. In addition, it also has an energy management system to achieve energy conservation and effective utilization.


Application fields of HZS50 hopper concrete batching plant:
- Construction projects:
Suitable for large industrial plants, commercial complexes, residential areas and other construction projects, which can meet the concrete needs of different scales and ensure the quality and progress of the project.
- Water conservancy projects:
It can be used for the construction of water conservancy projects such as reservoirs, dams, and channels to produce high-strength and durable concrete to ensure the stability and safety of water conservancy projects.
- Infrastructure construction:
It plays an important role in the construction of infrastructure such as roads, railways, and bridges. It can quickly and efficiently provide a large amount of high-quality concrete and improve the efficiency of engineering construction.


With the acceleration of urbanization and the continuous advancement of infrastructure construction, the demand for concrete continues to grow. As a small and medium-sized concrete production equipment, HZS50 hopper concrete plant has been widely used in construction projects, water conservancy projects, roads and bridges, etc. with its advantages of high efficiency, flexibility and economy, and has broad market prospects.
