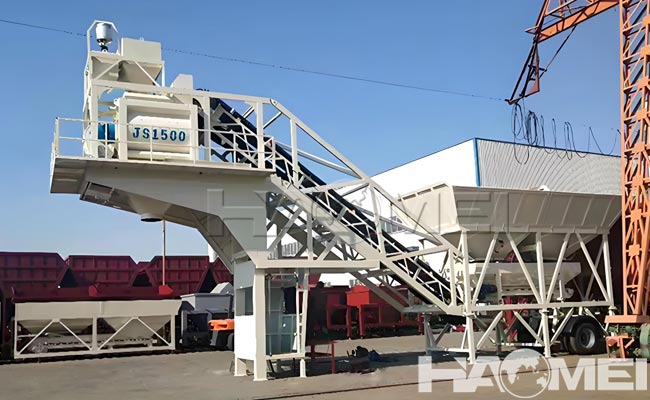

YHZS Series China Mobile Concrete Batching Plant

As a specialized manufacturer deeply committed to the export of concrete mixing equipment, Haomei Machinery’s YHZS series of mobile concrete batching plants consistently ranks among the top performers in export sales. Proven in the field across hundreds of projects in dozens of countries, the YHZS series china mobile concrete batching plant offers comprehensive competitiveness—spanning deployment efficiency, performance quality, and after-sales service—to precisely meet the core demands of infrastructure projects.


Efficient deployment is the standout inherent advantage of the YHZS series china mobile concrete batching plant. Covering a production capacity range of 25 m³/h to 120 m³/h, the mobile concrete batching plants features an integrated, trailer-mounted design. Five key systems—aggregate batching, conveying, mixing, weighing, and electrical control—are pre-installed on a single chassis, with the entire unit undergoing integrated testing before leaving the factory. On-site installation requires no dedicated concrete foundation; a leveled, hardened surface suffices. Leveling is achieved via four hydraulic outriggers, allowing for commissioning and production startup in as little as 12 hours—reducing the setup period by over 70% compared to stationary concrete batching plants of similar capacity. Relocation requires no disassembly of core components; the unit can be towed directly at speeds of 40–50 km/h, making it ideal for mobile construction scenarios involving multiple work sections. Calculations based on overseas projects show that for linear infrastructure with dispersed work sites, the ability to reuse a single YHZS mobile concrete batching plant across multiple projects can reduce equipment investment costs per project by over 40%, significantly boosting asset utilization.


Stable and reliable performance forms the cornerstone of the YHZS series mobile concrete batching plant' global market presence. The china mobile concrete batching plants comes standard with a twin-shaft forced concrete mixer; liners and mixing blades are crafted from high-manganese wear-resistant materials, offering a service life of at least 80,000 batches under normal operating conditions. Capable of handling crushed stone aggregates with particle sizes up to 60 mm, the plants consistently produce various concrete types, including standard and dry-hard concrete. The metering system utilizes an independent, tiered weighing architecture, maintaining precision within ±1% for powders and liquids and within ±2% for aggregates, thereby ensuring consistent and uniform concrete strength. The equipment features an optimized power system, achieving a stable electricity consumption of 0.7–0.8 kWh per cubic meter of concrete—approximately 15% lower than older models in the industry. Every unit undergoes multiple rounds of load testing before leaving the factory; the failure rate during continuous operation is 30% lower than the industry average, meeting the rigorous demands of 24-hour non-stop construction.


To address varying global operating conditions, the YHZS series china mobile concrete batching plant offers customized modifications—such as features for extreme cold, high heat, sandy/windy environments, and anti-corrosion protection—enabling operation in temperatures ranging from -30°C to 50°C. With a core component standardization rate exceeding 92% and the use of internationally standard specifications for wear parts, customers can easily source replacements locally. Haomei has established spare parts warehouses and technical service centers in key markets across Southeast Asia, Africa, and the Middle East. The company provides 24/7 remote technical support and on-site response within 48 hours in key regions, alongside services such as multilingual interface customization and on-site installation training, covering the equipment's entire lifecycle maintenance needs.


Years of export experience demonstrate that the core requirements for concrete mixing equipment in infrastructure projects are rapid deployment, stable operation, and reliable after-sales support. The YHZS series china mobile concrete batching plant is meticulously designed to meet these three priorities, delivering reliable concrete production solutions for diverse infrastructure projects worldwide through mature design, consistent quality, and comprehensive service.
