Concrete Batching Plant 1.5 m3 Capacity

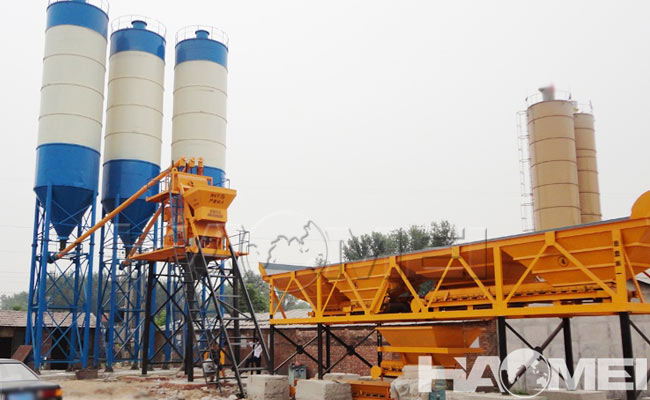

As the technology manager of Haomei Machinery, I deeply understand that the concrete batching plant 1.5 m3 capacity is a core piece of equipment for medium-sized construction projects. Our HZS75 concrete batching plant, with 20 years of export experience and millions of cubic meters of engineering projects validated, has become a benchmark product in the Asian, African, Southeast Asian, and Middle Eastern markets. This concrete batching plant, centered around a JS1500 twin-shaft forced mixer, has a theoretical capacity of 75-90 m³/h and a stable output of 60-70 m³/h under actual operating conditions. It can meet the continuous production needs of small and medium-sized projects while also featuring a flexible, modular design, perfectly adapting to the changing construction environments and resource conditions of emerging markets.

Our concrete batching plant 1.5 m3 capacity offers two main models to meet the site and budget requirements of different customers. The HZS75 belt conveyor type uses a fully enclosed belt conveyor for feeding, suitable for fixed construction sites with open spaces and high environmental protection requirements, reducing dust spillage and energy consumption. The HZS75 lifting bucket type optimizes space utilization with a vertical lifting method, particularly suitable for regions with high land costs such as Southeast Asia and the Middle East. Its aggregate storage hopper design allows the main mixing and batching to proceed simultaneously, shortening the production cycle by 90 seconds per batch. Both models come standard with a PLD2400 four-bin batching machine, supporting precise proportioning of various aggregates such as sand, gravel, and fly ash. Optional 2-4 100-300 ton cement silos are available to meet the production needs of concrete of different strength grades.

Modular structural design is the core competitiveness of the HZS75 concrete batching plant, balancing durability and ease of maintenance. The main mixing unit adopts a twin-shaft forced design, with two parallel main shafts carrying 7 sets of high-alloy wear-resistant mixing arms. The blades and liners undergo special heat treatment, extending their service life by 30% compared to industry standards, and can mix high-strength concrete of C60 and above. The shaft end seal utilizes a combination of imported rubber components and alloy seals, coupled with an automatic lubrication system, effectively addressing the corrosion issues caused by dust and humidity in tropical regions. The electrical control system, developed based on Siemens PLCs, supports multi-language operation and remote monitoring. In areas with unstable power grids in Africa, a voltage stabilizer can be installed to ensure metering accuracy within ±1%, a key technological improvement accumulated from our experience serving high-end projects in the Middle East.

From a technical manager's perspective, the core advantage of the HZS75 concrete batching plant lies in its golden balance of performance, cost, and adaptability. In terms of energy consumption, the entire machine has a power output of 44kW, reducing electricity consumption per cubic meter of concrete by 8% compared to similar products, which is crucial for the energy-intensive African market. In terms of maintenance design, we have centrally located vulnerable parts, eliminating the need for complete machine disassembly when replacing liners. Combined with a remote diagnostic system, this reduces the average downtime for overseas customers to within 2 hours. Specifically tailored to emerging markets, we have optimized the equipment's adaptability to aggregate mud content. In practical applications in Southeast Asian laterite regions, even with an aggregate mud content of 5%, concrete strength can still be guaranteed—a result based on our experience from over 50 projects in Indonesia, Malaysia, and other countries.

The HZS75 concrete batching plant has applications covering core engineering sectors in our key markets.
In Asia, it is widely used in municipal roads and small-to-medium-sized bridge construction, such as the new city development project in Ho Chi Minh City, Vietnam, where a single station can produce up to 15,000 cubic meters of concrete per month.
In Africa, it is suitable for housing construction and infrastructure projects in countries such as Nigeria and Kenya, and its high-temperature adaptability design allows it to operate continuously at 45°C.
In Southeast Asia, it is the preferred equipment for island resorts and port expansions, with a modular design that facilitates sea transport and on-site assembly.
The Middle Eastern market values its ability to mix high-strength concrete, and it has performed excellently in commercial construction projects in Dubai and Qatar. It is particularly noteworthy that this model can mix various types of concrete, including dry-hard, plastic, and fluid concrete, adapting to different needs from general housing construction to water conservancy projects.

Regarding price, the export price range for the HZS75 concrete batching plant is US$68,000-85,000, varying depending on the configuration. The basic configuration (including a JS1500 main unit, PLD2400 batching machine, and one 100-ton cement silo) costs approximately US$68,000-72,000; the high-end version (including dual cement silos, fully enclosed conveyor belts, and a remote monitoring system) costs approximately US$78,000-85,000. As the technical lead, I advise clients to choose the configuration based on project scale and local resource conditions—for example, African clients can prioritize dust control systems and spare parts packages, while Southeast Asian clients should strengthen corrosion protection designs. We provide not only equipment, but also technical solutions based on experience from over 200 projects worldwide, ensuring clients achieve stable production capacity at the optimal cost.

Haomei HZS75 concrete batching plant 1.5 m3 capacity is the culmination of ten years of technological accumulation and market insight. With its reliable performance, flexible configuration, and design adapted to emerging markets, it serves as a bridge connecting technology and engineering. As the production technology manager, I firmly believe that truly good equipment must not only meet technical parameters but also solve the actual pain points of customers—this is the core reason why the HZS75 concrete batching plant continues to gain recognition in the global market.
