Cost of Setting Up a Ready Mix Concrete Plant

As a company with over ten years of experience in the manufacturing and export of ready mix concrete plants, Haomei Machinery firmly believes that the core cost of setting up a ready mix concrete plant lies in the equipment, as this investment directly determines the plant's cost-effectiveness and long-term operational benefits. Many customers, when inquiring, always ask "How much does a ready mix concrete plant cost?", neglecting the subtle differences in equipment configuration—for the same model of batching plant, the cost can differ by more than 50% due to variations in core component selection and the completeness of supporting facilities.

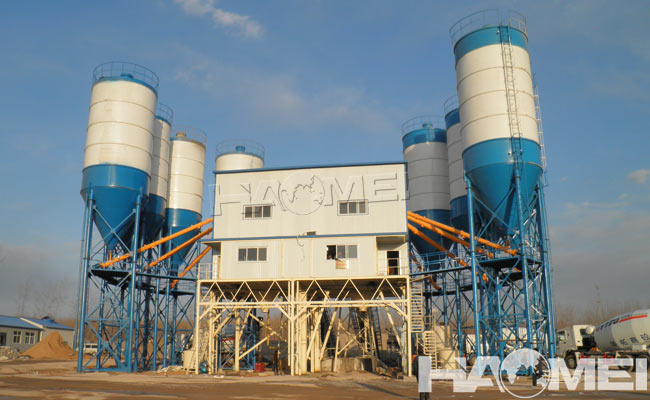

The HZS120 ready mix concrete plant has a theoretical capacity of 120 m³/h, suitable for medium-sized commercial concrete plants and large-scale engineering projects. It is one of the most popular export models globally. Its equipment cost is mainly divided into three parts: the core unit, supporting systems, and auxiliary facilities. Data is derived from Haomei's mass production pricing and industry testing, ensuring accuracy and reference value.
The core equipment unit is the most significant cost component, accounting for 40%-45% of the total equipment investment. This model comes standard with a JS2000 twin-shaft forced mixer, crucial for ensuring concrete homogeneity. The original Haomei unit costs approximately US$43,500-50,700, employing wear-resistant alloy liners and imported reducers, making it US$4,300-7,200 more expensive than ordinary units, but offering twice the lifespan and reducing maintenance costs by 60%. Years of experience have shown that many overseas customers choose low-priced units to save on initial costs, only to later suffer increased downtime losses due to rapid liner wear and frequent reducer failures, ultimately proving counterproductive.
The supporting systems constitute a significant portion of the cost, accounting for 35%-40%, primarily including the batching, conveying, and metering modules. The batching system uses a PLD3200 four-compartment batching machine, costing approximately US$21,700-26,100. The four-compartment design allows for precise proportioning of sand and gravel aggregates, avoiding concrete quality fluctuations caused by single-compartment batching. The conveying system includes screw conveyors and belt conveyors, with a total cost of approximately US$17,400-21,700. Differences in the sealing design of the screw conveyor can affect dust pollution and material loss; Haomei's sealing structure reduces powder waste by 30%. The metering system is a core control point, with water, cement, and admixtures metered separately. It is equipped with a micro-admixture scale and a master-slave screw conveyor, achieving a metering accuracy rate of 99%, costing approximately US$11,600-14,500. This is an essential configuration for high-standard projects such as high-speed rail and highways.
Auxiliary facilities and customized configurations account for 15%-20% of the cost, directly impacting operational efficiency and environmental compliance. The basic configuration includes four 100-ton cement silos (approximately US$29,000-36,200), main dust removal equipment (US$4,300-7,200), and a fully automated control system (US$8,700-11,600). To meet environmental requirements, an additional fully enclosed outer casing and sand/gravel separation system are needed, requiring an additional investment of US$11,600-17,400. For overseas export customers, the modular design reduces ocean freight costs. The Haomei HZS120 modular version requires only two high-cube containers for ocean freight, saving 60% in transportation costs compared to traditional models. Although the equipment cost increases by 5%, the overall export cost is reduced by more than 10%.


In summary, the cost of a standard Haomei HZS120 ready mix concrete plant is approximately US$123,200-137,700, the simplified version (with simplified batching and environmental protection features) is approximately US$101,500-108,700, and the high-end intelligent version (including IoT monitoring and an automatic batching system) is approximately US$152,200-166,700. Based on export experience, when overseas clients build websites, it is recommended to prioritize the quality of core components and avoid blindly pursuing low prices. At the same time, configurations should be customized according to local environmental policies and project requirements. For example, in Southeast Asia, modularity and easy installation are emphasized, while in Europe, environmental protection and intelligent management need to be strengthened. This is the only way to maximize the cost-effectiveness of equipment investment.


Equipment cost investment is never about "saving as much as possible," but rather "precise matching." As a ready mix concrete plant manufacturer, Haomei Machinery adheres to the principle of "controllable costs and superior quality," providing clients with accurate cost accounting and leveraging industry experience to avoid selection pitfalls, ensuring that every penny invested in equipment translates into long-term operational benefits.
