Core Parts of Concrete Batching Plants

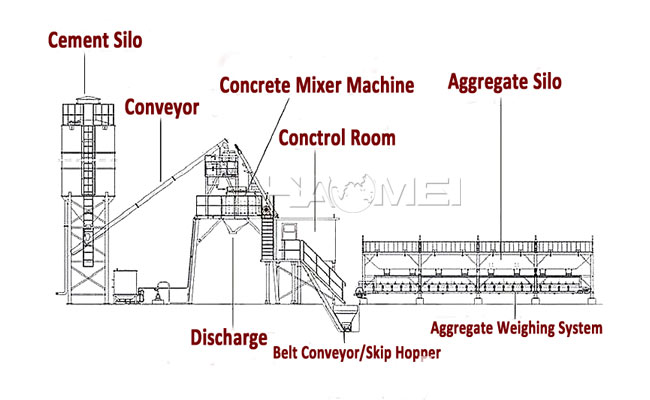

Concrete batching plants are complete sets of production equipment in the construction engineering field. Their overall performance and service life are not determined by a single parameter, but rather by the configuration precision and synergistic capabilities of core parts such as the mixing host, metering system, material conveying and storage unit, and environmental protection supporting unit. Most users prioritize theoretical capacity and overall machine price when selecting a model, easily overlooking the differences in material technology, structural design, and adaptability of core components. These details are precisely the key to long-term stable operation and cost control. Based on Haomei Machinery's years of experience in equipment R&D and global project services, we will break down the technical points and selection logic of each core part from a functional perspective to help you understand the deep differences in equipment configuration.



The mixing host is the core power unit of the entire concrete batching plant equipment and a key part determining the homogeneity of concrete and production efficiency. Current mainstream projects use twin-shaft forced-action concrete mixers, whose core components include the mixing drum, mixing shaft assembly, blade liners, and shaft end sealing system. The shaft end seal is the weakest link most prone to failure. Ordinary models often use simple packing seals, which are prone to grout leakage over long-term operation. Haomei's JS series and SICOMA MAO series main units both employ floating seals and a multi-layered protection structure, coupled with high-pressure grease automatic lubrication, effectively preventing mortar from entering the bearings. Meanwhile, the mixing blades and liners are made of high-chromium alloy and undergo a special heat treatment process, increasing their wear resistance by more than 40% compared to ordinary manganese steel, significantly reducing the frequency of replacement of vulnerable parts.


The metering system is the precision control unit of the concrete batching plant, directly determining the stability of the concrete mix proportions. It is subdivided into three categories: aggregate metering, powder metering, and liquid metering. Aggregates are mostly measured dynamically using belt conveyors, while powders and admixtures are measured statically using electronic scales. The core components are weighing sensors and signal transmission modules. A common industry problem is the impact error during dynamic material feeding. Many low-end devices rely solely on simple weighing for metering, and actual production errors easily exceed the specified range. All Haomei concrete batching plant equipment utilizes high-precision weighing sensors paired with a dynamic drop compensation algorithm to correct material feeding deviations in real time, controlling powder metering errors to within ±1% and providing even higher accuracy for liquid additives, ensuring the stability of concrete grade at the component level.


The material conveying and storage unit is the link between various processes, mainly comprising a screw conveyor, a closed belt conveyor, and storage silos. The screw conveyor is responsible for powder conveying; the key difference lies in the sealing and wear-resistant design of the central hanging shaft. Ordinary models are prone to dust accumulation and shaft jamming, requiring frequent maintenance. Our concrete batching plant equipment uses an integrated sealed hanging bearing with wear-resistant linings, suitable for long-term continuous operation in high-dust environments. The belt conveyor section is equipped with automatic correction rollers and sealed corridors, reducing material spillage and dust generation during conveying, meeting the environmental protection requirements of construction sites.


Environmental protection units are essential components of modern concrete batching plants, primarily including a pulse dust removal system, wastewater recovery devices, and noise reduction components. The core of dust removal for the silo roof and main building lies in the filter cartridge material and the dust removal system. Ordinary filters are prone to clogging and have low dust removal efficiency. Haomei uses membrane-coated polyester filter cartridges combined with pulse-jet cleaning, achieving a dust removal efficiency of over 99.5%. The accompanying sand and gravel separation and wastewater recycling components enable zero discharge of cleaning wastewater, meeting the stringent requirements of green production in the current construction industry.


Ultimately, a high-quality concrete batching plant is not simply a collection of high-end components, but rather a system of well-integrated units. Haomei consistently optimizes component selection and overall design around the principles of "stability, precision, and low consumption," controlling every step from core parts to system integration to provide long-lasting and reliable concrete production equipment for various construction projects.
